IP65 Outdoor With Terminal Junction Box

Model : SHJK
In daily life and work, whether it is home appliances or industrial control devices, junction boxes are needed for wire connections.
Description:

In daily life and work, whether it is home appliances or industrial control devices, junction boxes are needed for wire connections.

Plastic junction boxes are widely used in the low-voltage electrical field, exhibiting features such as fire resistance, insulation, corrosion resistance, and acid and alkali resistance. The terminals inside the junction box are designed with a fixed structure, making them less prone to loosening and ensuring secure and stable wire connections.

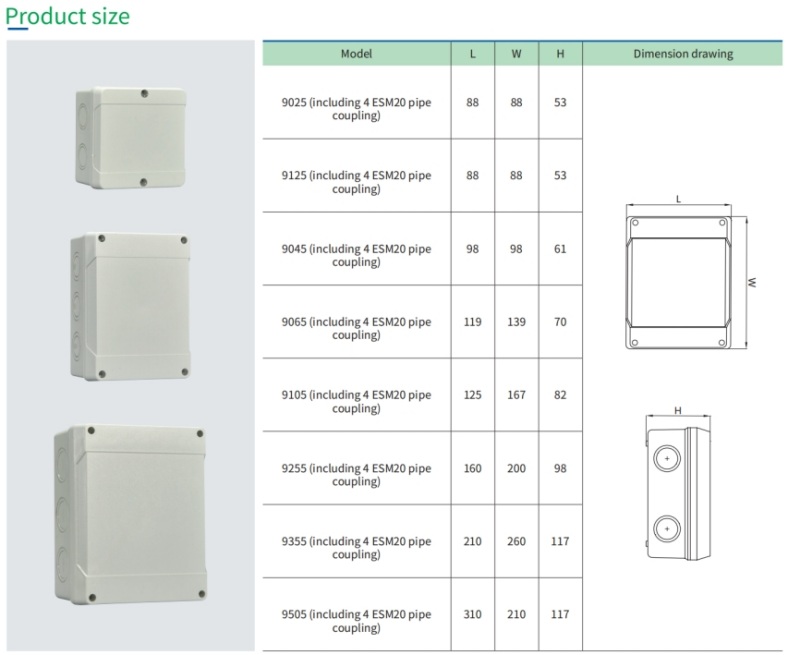

Parameter:

Characteristic:

Colour: RAL 7035

Type of cover: Cover

Number of rows: 1

Product accessories: Mounting fittings

IP protection level: IP65

Flame retardant: 750℃ (30s)



ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



ELECTRIC BOX PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage:Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

conforming to the standards:EN 60670-1, DIN EN 60670-24



MATERIAL CHARACTERISTICS

Material:PC

According to IEC 60695-2-11 glow wire test temperature:750 °C

UL 94 Class:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes



APPLICATION SCENARIO

Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic
