Plastic junction boxes are widely used in the low-voltage electrical field, exhibiting features such as fire resistance, insulation, corrosion resistance, and acid and alkali resistance. The terminals inside the junction box are designed with a fixed structure, making them less prone to loosening and ensuring secure and stable wire connections.

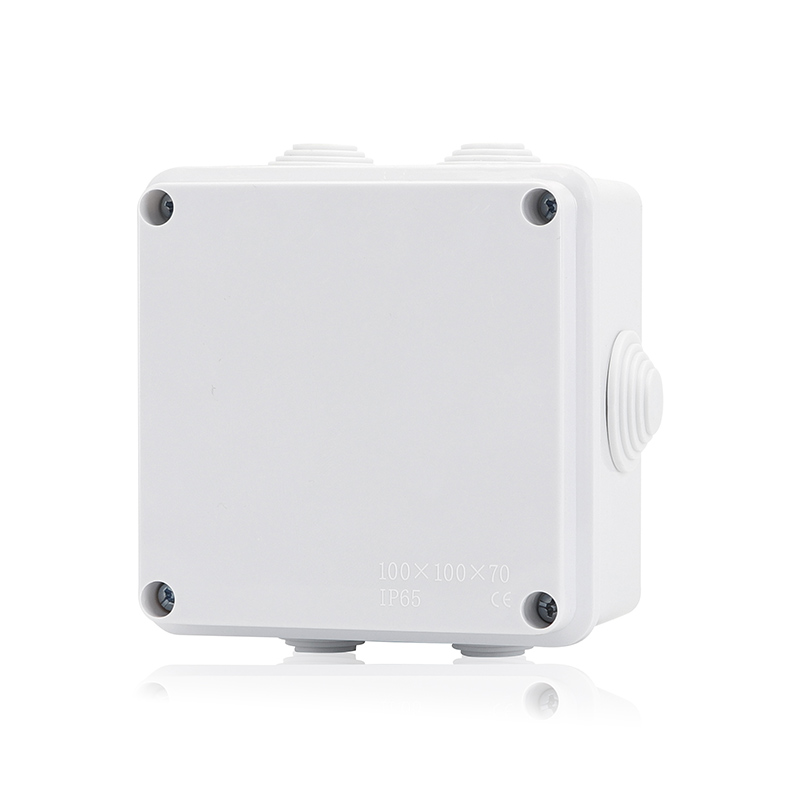

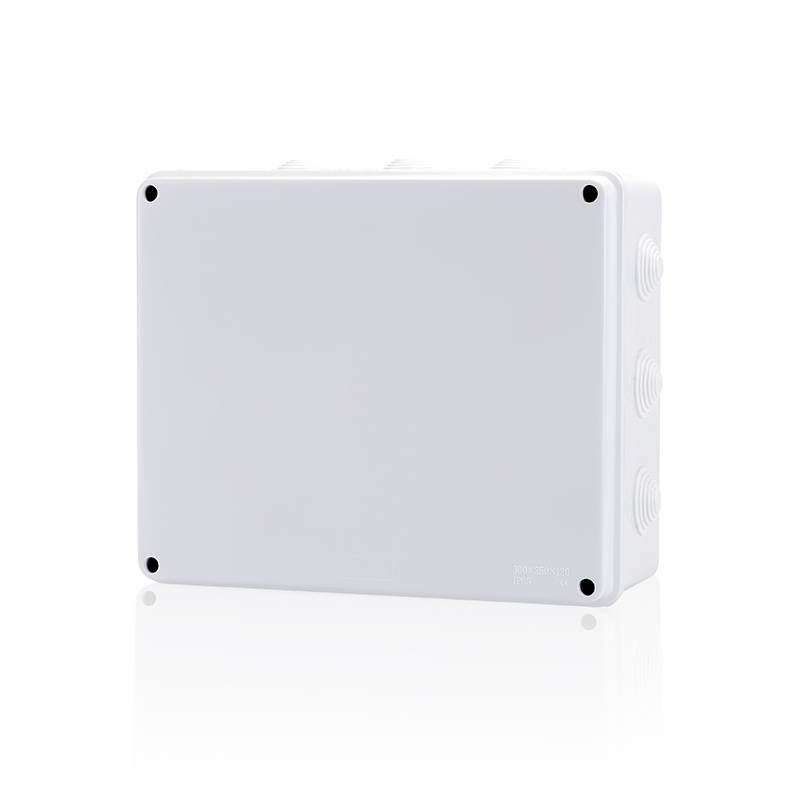

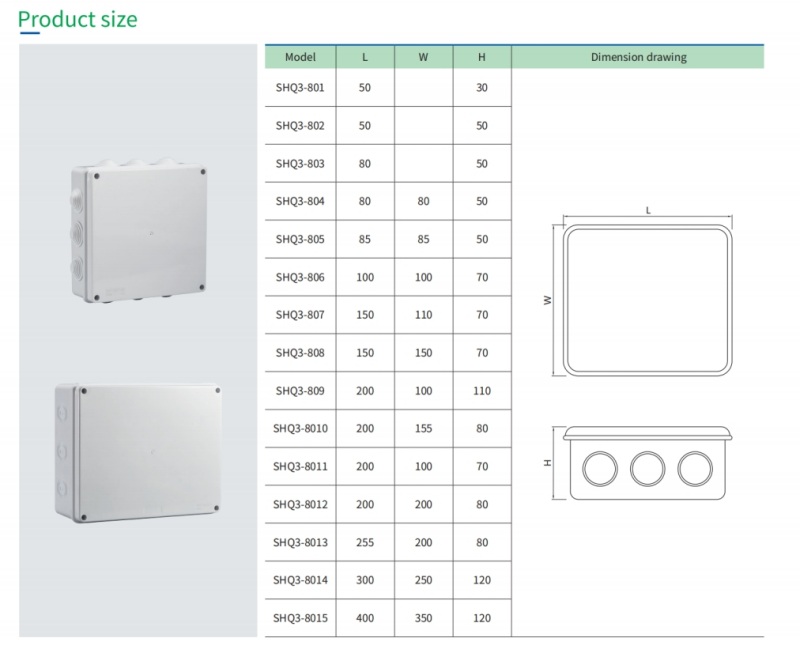

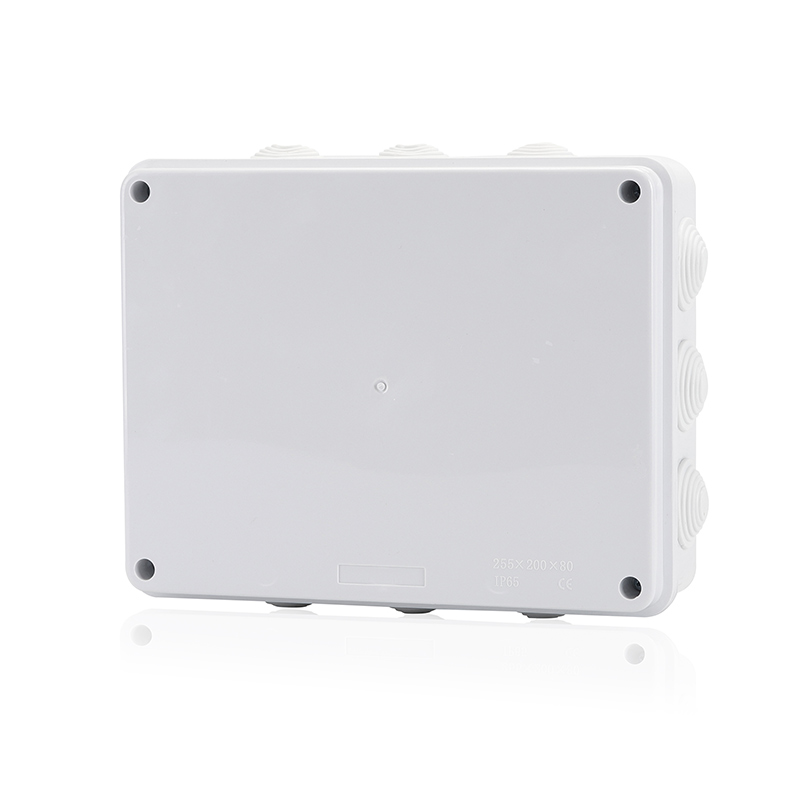

SHQ3 series junction boxes are divided into two types: with knock-out holes and without knock-out holes. Customers can choose to have rubber plugs or knock-out holes according to their needs. The interior space of the junction box is spacious, and the installation of wires is simple and convenient, and it is also very easy to use.
Colour: RAL 7035
Type of cover: Cover
Number of rows: 1
Product accessories: Mounting fittings
IP protection level: IP65
Flame retardant: 650℃ （30s）
ENVIRONMENTAL CONDITION
Application area: Indoor/Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -5 °C up to +40 °C
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C
ELECTRIC BOX PERFORMANCE
Rated voltage: Un = 400 V
Rated insulation voltage：Ui:690V
Protection class:II
Rated current (of the terminal):In = 75 A
N separable:No
conforming to the standards:EN 60670-1, DIN EN 60670-24
MATERIAL CHARACTERISTICS
Material:ABS plastic
According to IEC 60695-2-11 glow wire test temperature:650 °C
UL 94 Class:V-2
Temperature resistance:-25 °C up to +80 °C
Halogen-free:Yes
Silicone-free:Yes
APPLICATION SCENARIO
Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic
