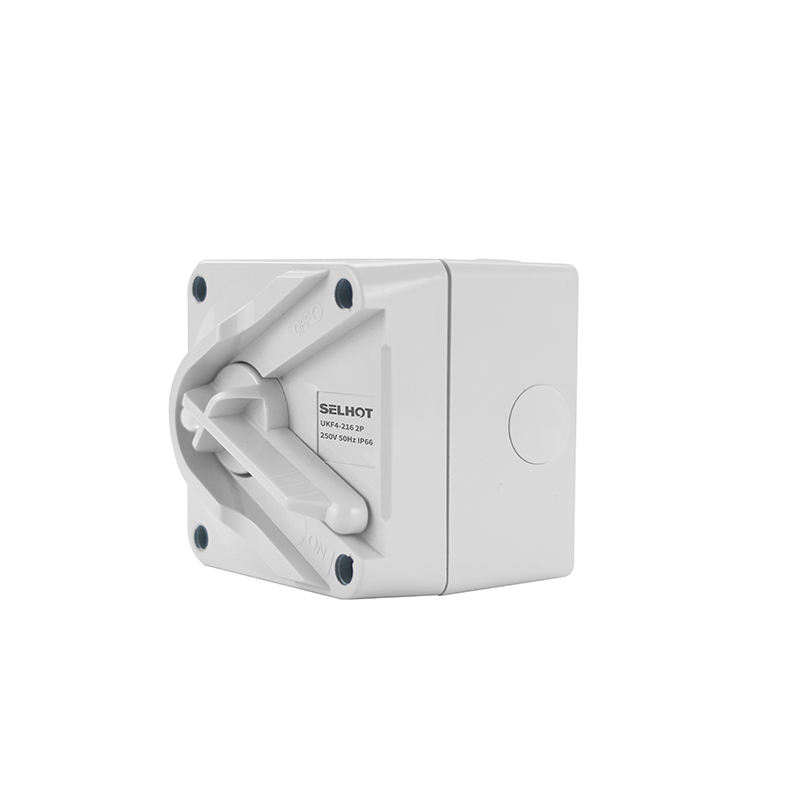

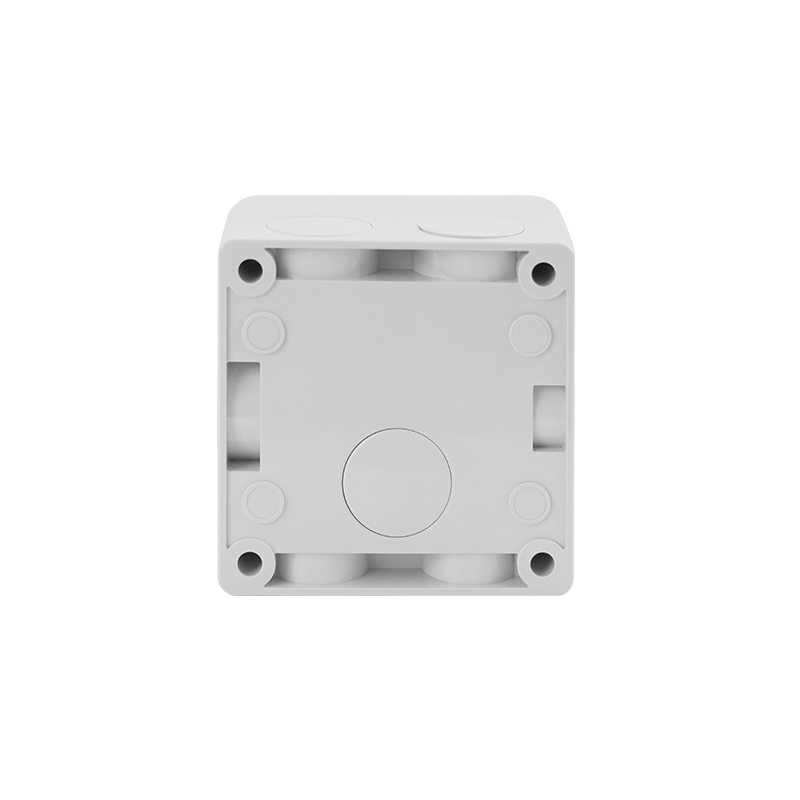

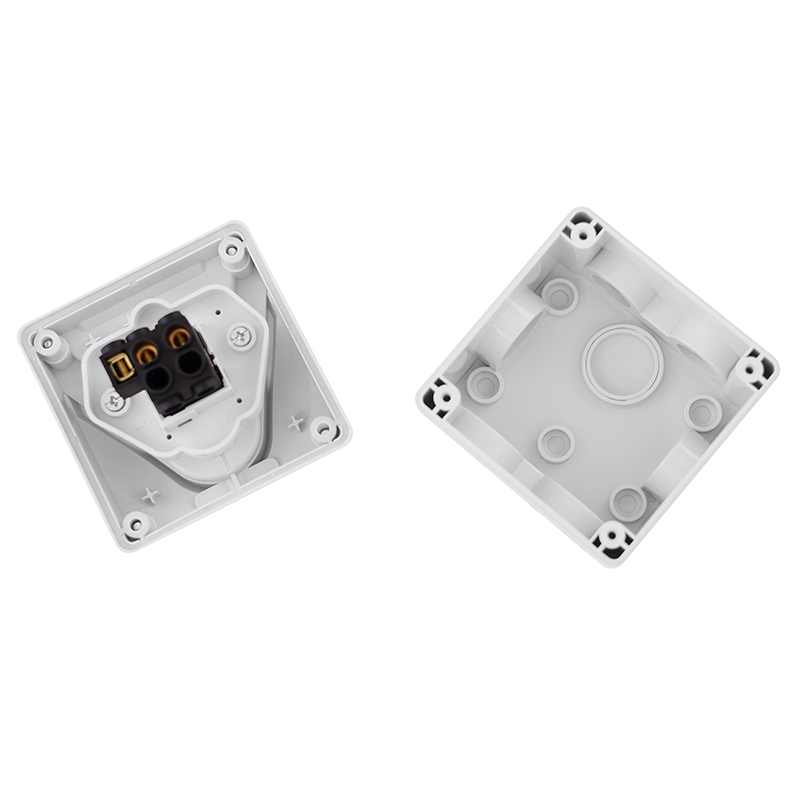

Mini Waterproof Isolating Switch

Model : UKF4
Mini Waterproof Isolating Switches are suitable for applications with a rated voltage of 250V and a rated current of 16A. The Miniature Isolating Switches, on the other hand, are made of UV and corrosion resistant polycarbonate material and are available in single and double pole models to meet different circuit requirements.
Description:

The Mini Waterproof Isolating Switch's plastic enclosure effectively prevents dust, moisture and other contaminants from entering the interior of the switch. This protection prevents potential malfunctions, such as short circuits or faults, caused by the ingress of contaminants. The rugged construction ensures that the switch maintains its integrity even under harsh environmental conditions, further increasing its reliability.

Parameter:

Characteristic:

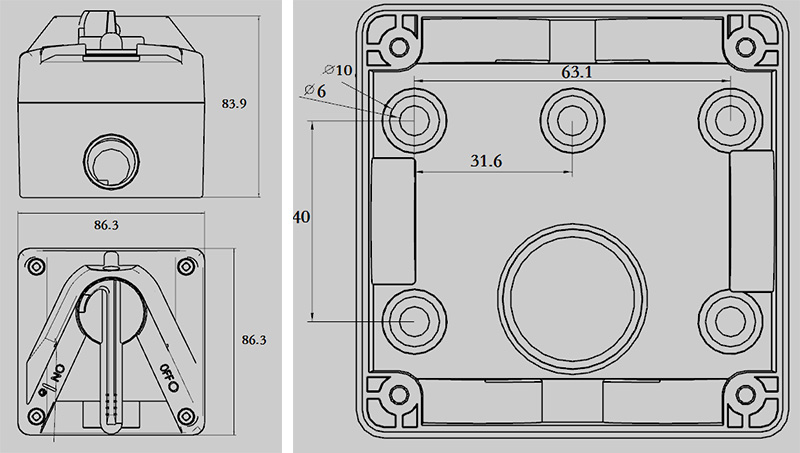

SIZE:86*86*86(MM)

Specification:1P/2P

Rated current:16A/20A/25A/32A

Rated voltage:250V

Material:PC

Material of contact:Silver contact point

Colour: RAL 7035

Product accessories: Mounting fittings

IP protection level: IP66

Flame retardant: 850℃ (30s)

Operating environment temperature: -25℃~+40℃ in places with corrosion and conductive dust.
