The PV DC Mould Case Circuit Breaker Enclosure is made of UV-resistant PC (polycarbonate) material, which effectively blocks strong sunlight. The use of UV resistant PC not only ensures the long term durability of the housing, but also maintains its aesthetic appeal by minimising fading and degradation caused by exposure to harmful UV rays. In short, the SHXC series features a vent valve and UV resistant PC housing to provide superior protection for DC MCCBs in a variety of outdoor and harsh environments.
Material characteristics
Material:ABS Shell / PC Door
According to IEC 60695-2-11 glow wire test temperature:650 °C
UL 94 Class:V-2
Temperature resistance:-25 °C up to +80 °C
Rated current (A):100
Halogen-free:Yes
Silicone-free:Yes
Product properties
Number of modules: 2
Number of rows: 1
IP protection level: IP66
Impact protection class：IK09
Flame retardant: 650℃ （30s）
Environmental condition
Application area: Indoor/Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -25~+40. max, 95% humidity
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C

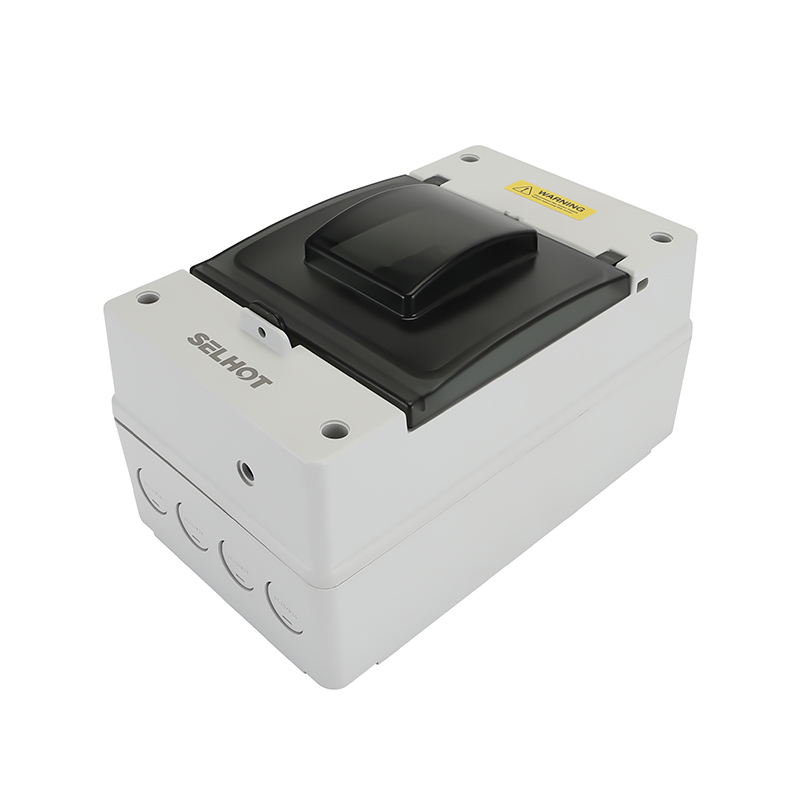

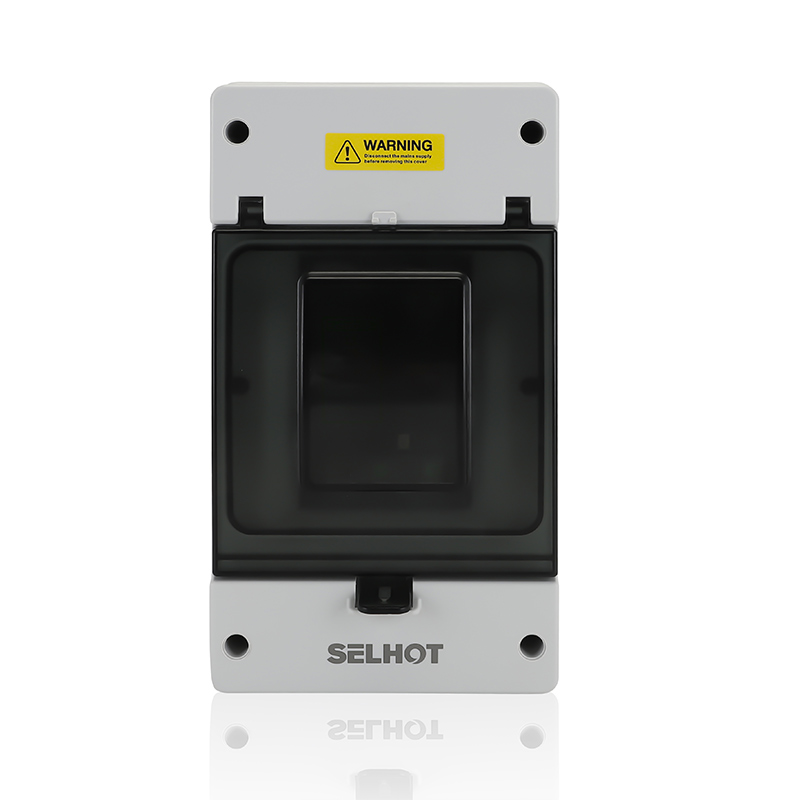

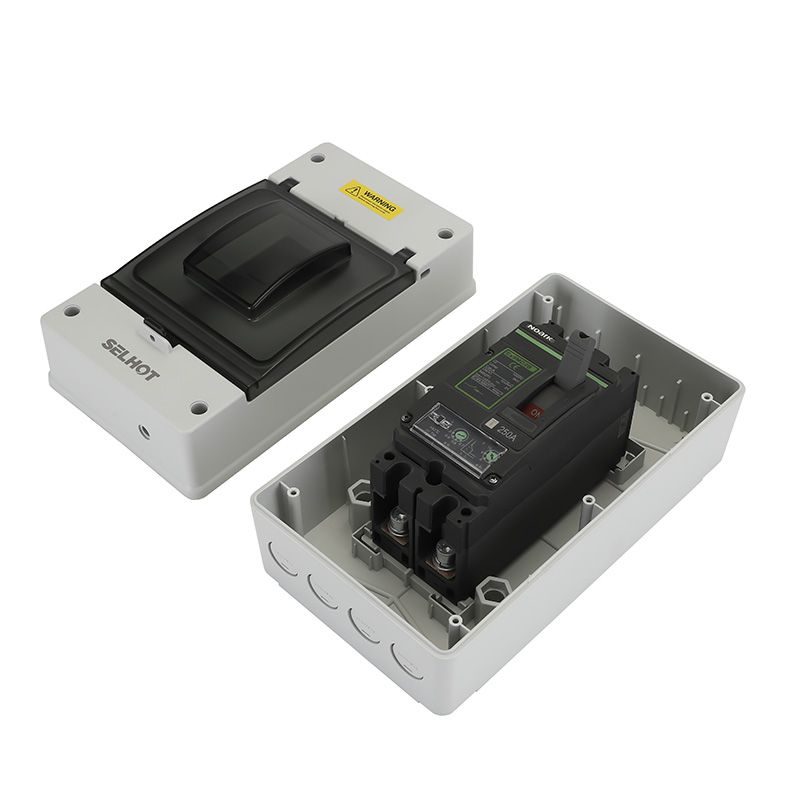

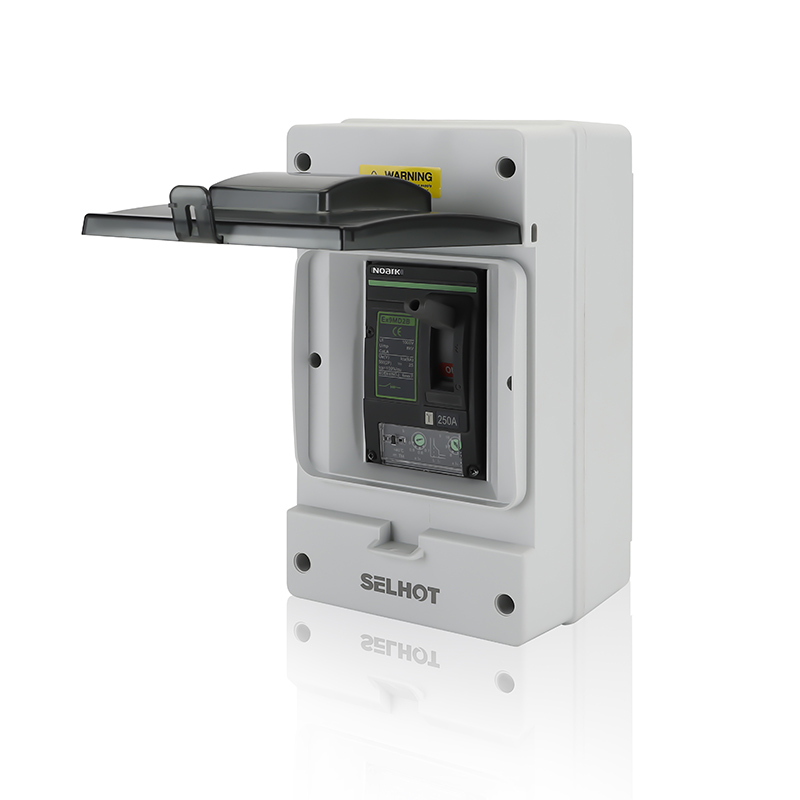

The SHXC distribution box is specifically designed for DC molded case circuit breakers. Its enclosure boasts a waterproof rating of IP65, ensuring reliable protection against water ingress.
SHXC distribution box is equipped with UV resistance, making it resilient against various harsh environmental conditions. Inside, the thoughtful design incorporates vents to prevent the formation of moisture even under significant temperature fluctuations.
