PV distribution box

Model : SHA Series

With ample internal space, the PV distribution box offers unrivalled convenience for wiring and connections, allowing for easy and efficient installation and maintenance. This spacious design eliminates the need for cramped and complex configurations, simplifies the process, and its ability to be used in harsh outdoor environments, coupled with its user-friendly design and smart features, makes it ideal for a wide range of solar applications.

Parameter:

Model	L	W	H
SHA4	142	205	97
SHA8	215	209	119
SHA12	296	256	140
SHA18	410	285	140
SHA24	298	420	140
SHA36	298	570	140
SHA54	569	413	138.5
SHA72	878	413	160.4

Characteristic:

Features:

Luxurious, beautiful, durable and safe
Waterproof and dustproof

Specifications:

Color: RAL 7035
transparent lid
Module: 4-36 channels
Number of lines: 1-3
IP rating: IP65
IK level: IK09

Environment:

Indoor and outdoor
Temperature: -5°C to +40°C
Humidity: ≤100% at 25℃

Electrical:

Rated voltage: 400V
Insulation voltage: 690V
Rated current: 75A
Standard: EN 60670-1, DIN EN 60670-24

Material:

ABS/PC
Temperature resistance: -25°C to +80°C
Halogen-free, silicon-free

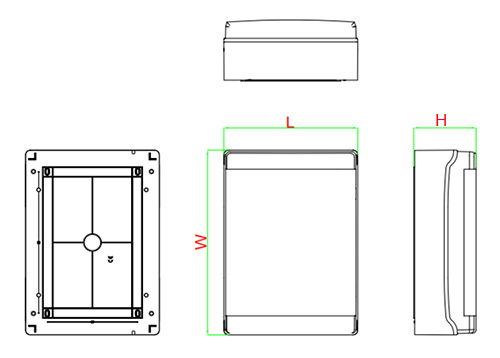

Drawing:
